Product Description

Overview

Push mount cable ties, also known as TPTs, are a one-piece design that attaches cable bundles to surfaces like walls, ceilings, or control panels through pre-drilled holes. They are often used for wire management and are recommended for applications that require one-step fastening.

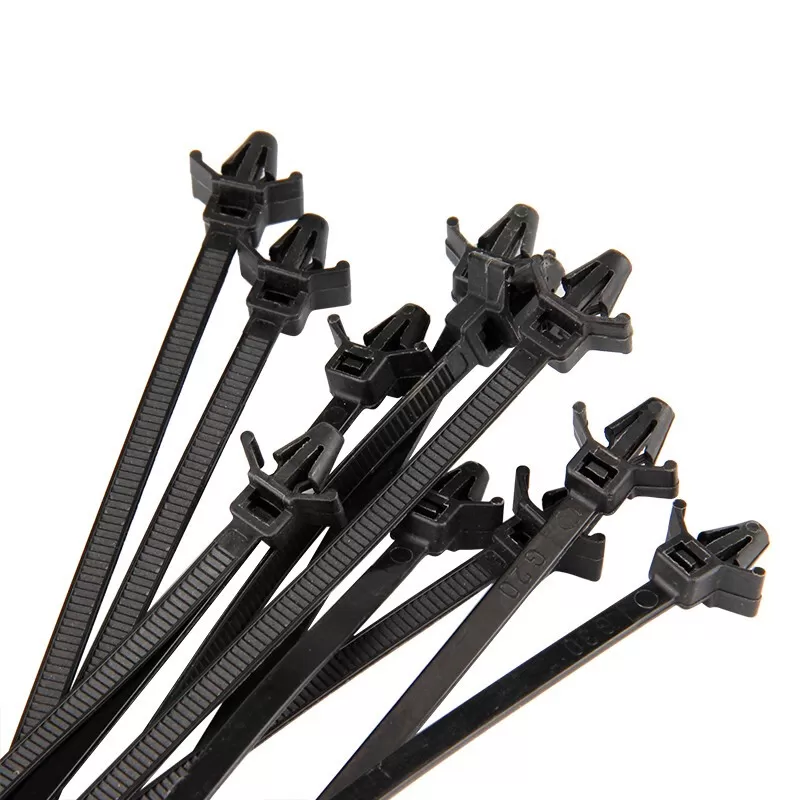

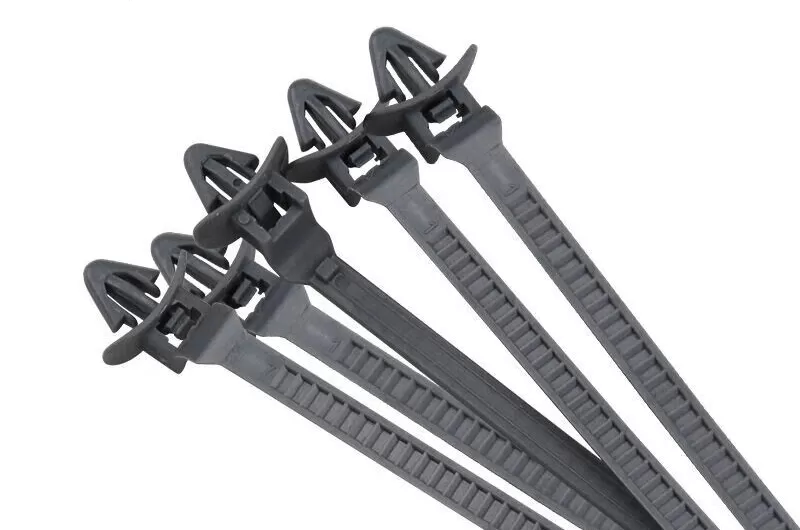

Push Mount Nylon Cable Ties

• Push-mount cable ties snap quickly into a hole to attach a bundle to another surface

• The mount portion is easily passed into a pre-drilled hole and locks into place

• Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation


These cable ties are designed to save time and effort during installation, making them a logical choice for manufacturers and OEMs who require bulk quantities of cable ties for their production and assembly processes.

Push mount cable ties are a cost-effective solution for managing wires and cables, as they can be installed quickly and easily without the need for additional hardware. This leads to increased efficiency and productivity in the manufacturing process.


◆Material:Nylon 66, 94V-2 certificated by UL. Acid & erosion control,insulate well and not easy to aging、tensile strong.
◆Application temperature:-40℃ to 85℃
◆Installation temperature:-20℃ to 85℃
◆Color:Natural, Black,UV black, other colors are available as requested.


Push mount cable ties are a type of cable tie that feature an integrated mount, allowing them to be easily inserted into existing holes for fast and secure wire management. To learn more about Push mount cable ties product information, please contact us! We will provide you with a more detailed product explanation.

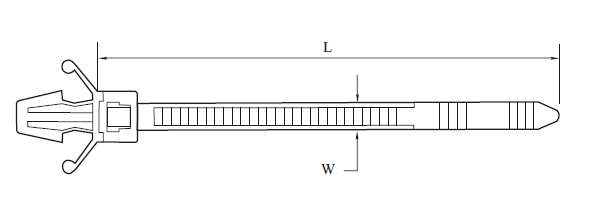

Technical Parameters



Item NO.LW(mm)Max.Bundle DIA.(mm)Tensile Strengthφ
Hole Dia.
Panel Thickness
InchmmLBSKGSInchmmInchmm
CHS-100PT4″1002.522188.00.1894.80.0942.4
CHS-120PT4 3/4″1203.2253013.60.1574.00.0792.0
CHS-120PPT4 3/4″1204.8255022.00.2526.40.1263.2
CHS-123PT4 4/5″1233.5264018.00.1574.00.0792.0
CHS-160PT6 1/4″1604.8385022.00.2526.40.1263.2
CHS-190PT7 1/2″1904.8455022.0.2526.40.1263.2
