Product Description

Overview

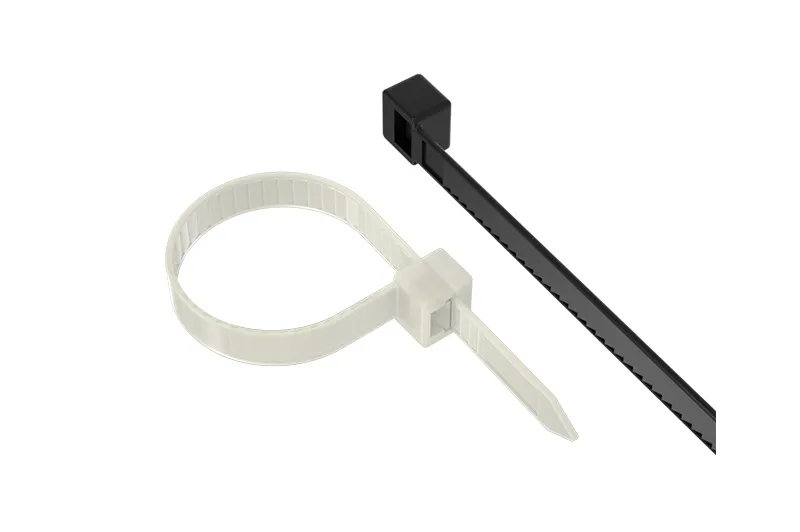

Iinformation of Self Locking Cable Tie

Material Composition

These cable ties are crafted from UL approved polyamide nylon 66, ensuring durability and strength.

Fire Rating

Our self locking cable ties have a UL94V-2 fire rating, signifying their high safety standards.

Resistance Properties

Our self locking cable ties are resistant to acid and corrosion, with excellent insulating properties, making them suitable for challenging industrial environments.

Aging and Bearing Capacity

These nylon cable ties are not easily subject to aging, maintaining their strength and possess a strong bearing capacity.

Temperature Range

They can withstand a broad temperature range from -40℃ to 85℃, offering adaptability in various conditions.

Installation Range

The installation temperature range spans from -20°C to 85°C, providing flexibility during application.

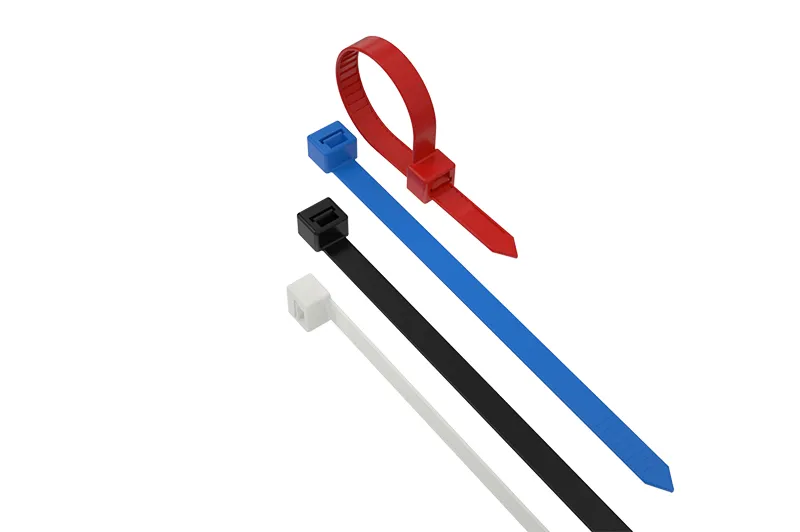

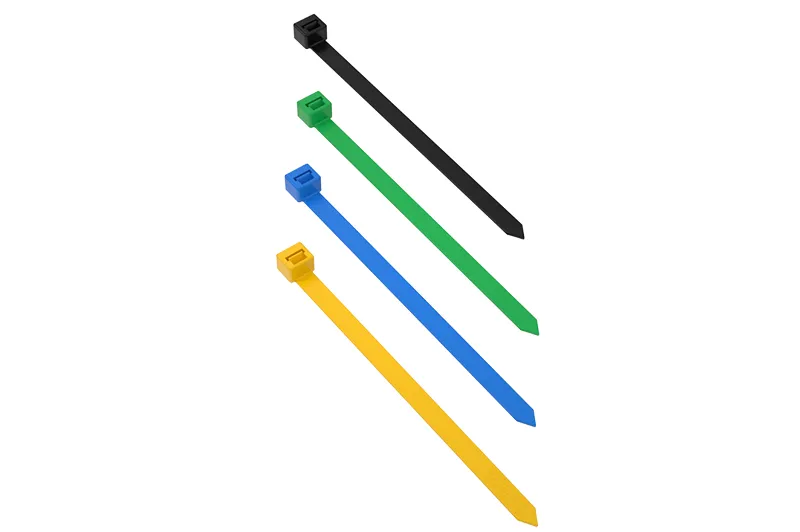

Color Options

Standard colors include natural, black, and UV-resistant black, catering to different needs. Additionally, special colors can be produced based on specific orders or requirements.


Self-locking cable ties application

Industrial Manufacturing

Production lines: In factory automation equipment, it is used to fix and organize control lines, sensor lines, etc. to ensure the neatness and safety of the production line.


Automobile Manufacturing

Vehicle wiring harness: In the process of automobile manufacturing, it is used to fix and organize various wiring harnesses to ensure that the cables are reasonably and safely laid out in the car.


Household appliances

Inside of household appliances: In the interior of household appliances such as televisions, washing machines, air conditioners, etc., it is used to fix and organize various cables to ensure the neatness and safety of the equipment. In home decoration, it is used to organize and fix wires on walls, ceilings, floors, etc. to improve the neatness and safety of the home environment.


Outdoor applications

Power lines: In the installation and maintenance of outdoor power lines, it is used to fix and organize cables to ensure the neatness and safety of the lines. In the construction of communication base stations, it is used to fix and organize antennas, feeders, etc. to ensure the neatness of the base station and the stability of signal transmission.


How to use

Choose the right size: According to the number and diameter of cables to be fixed, choose a self-locking cable tie of the right size.

Installing the cable tie: Put the cable tie on the cable or object to be fixed.

Tighten the cable tie: Pull the cable tie tight until the cable is securely fixed, then break or cut off the excess tie head to keep it neat.


Whether you need more information, samples, a quote, or advice for a project, we would be delighted to talk to you. Contact us!

contact us

Technical Parameters

Item..noLengthWidthMax.BundleDia. EMin.loopTensile Strength
InchmmmmmmLBSKGS
ZGS 1.8x802 3/16"801.816136
ZGS-1.8x1004"1001.822136
ZGS-1.8×1202 3/41201.830136
ZG5-2.0x1506"150235136
ZGS-2.0×2008"200250136
ZGS-2.5x802 3/16"802.516178
ZGS-2.5×1004"1002.522178
ZGS-2.5×1202 3/4"1202.530178
ZGS-2.5×1506”1502.535178
ZG5-2.5×2008"2002.550178
ZGS-2.7×1506"1502.7352612
ZG5-2.7×2008"2002.7502612
ZG5-2.7×25010”2502.7652612
ZGS-2.7×30011 5/8"3002.7802612
ZGS-3.0×1506”1503353015
ZGS-3.0×2008"2003503015
ZGS-3.0×25010"2503653015
ZGS-3.0×30011 5/8"3003803015
ZG5-3.3×2008"2003.3503515
ZGS-3.3×25010"2503.3653515
ZGS-3.3×30011 5/8"3003.3803515
ZGS-3.3×35013 3/4"3503.3903515
ZGS-3.6×1506"1503.6353918
ZGS-3.6×2008"2003.6503918
ZGS-3.6×25010"2503.6653918
ZGS-3.6×35013 3/4"3503.6903918
ZG5-3.6×37014 1/2"3703.61003918
ZGS-3.9×40015 3/4"4003.91054018
ZGS-3.9×45017 3/4"4503.91304018
ZG5-3.9×50019 11/16"5003.91504018
ZGS-4.8x2008"2004.8505726
ZGS-4.8×25010"2504.8655726
ZG5-4.8×30011 5/8"3004.8805726
ZGS-4.8×35013 3/4"3504.8905726
ZGS-4.8×37014 1/2"3704.81005726
ZG5-4.8x40015 3/4"4004.81055726
ZGS-4.8x45017 3/4"4504.81305726
ZG5-4.8x50019 11/16"5004.81505726
ZGS-4.8x65025 9/16"6504.81905726
ZGS-5.1×2008"2005.1506030
ZGS-5.1×25010"2505.1656030
ZGS-5.1×30011 5/8"3005.1806030
ZGS-5.1×35013 3/4"3505.1906030
ZGS-5.1×40015 3/4"4005.11056030
ZGS-5.1×50019 11/16"5005.11506030
ZGS-7.6×2008"2007.65012155
ZGS-7.6×25010"2507.66512155
ZGS-7.6×30011 5/8"3007.68012155
ZGS-7.6×35013 3/4"3507.69012155
ZGS-7.6×40015 3/4"4007.610512155
ZGS-7.6×40015 3/4"4007.610512155
ZGS-7.6×45017 3/4"4507.613012155
ZGS-7.6x50019 11/16"5007.615012155
ZGS-7.6×55021 1/16"5507.616012155
ZG5-7.6x60023 5/8"6007.617012155
ZGS-8.8x40015 3/4"4008.810517680
ZGS-8.8×45017 3/4"4508.813017680
ZG5-8.8x50019 11/16"5008.815017680
ZGS-8.8×55021 1/16"5508.816017680
ZG5-8.8x60023 5/8"6008.817017680
ZG5-8.8x65025 9/16"6508.819017680
ZGS-8.8x72028"7208.820517680
ZGS-8.8x76030"7608.822517680
ZGS-8.8x80032"8008.824317680
ZGS-8.8×92036"9208.826517680
ZGS-8.8x122048"12208.834017680
ZGS-12×30011 5/8"3001280240110
ZGS-12×50019 11/16"50012150240110
ZGS-12x60023 5/8"60012170240110
ZG5-12x65025 9/16"65012190240110
ZGS-12×70028"70012200240110
ZGS-12×76030"76012225240110
ZGS-12×80032"80012243240110
ZGS-12×86034"86012253240110
ZGS-12×90036"90012265240110
ZGS-7.6×45017 3/4"4507.613012155
ZGS-7.6×50019 11/16"5007.615012155
ZG5-7.6×55021 1/16"5507.616012155
ZG5-7.6x60023 5/8"6007.617012155
ZGS-8.8x40015 3/4"4008.810517680
ZG5-8.8x45017 3/4"4508.813017680
ZGS-8.8x50019 11/16"5008.815017680
ZGS-8.8×55021 1/16"5508.816017680
ZGS-8.8x60023 5/8"6008.817017680
ZGS-8.8x65025 9/16"6508.819017680
ZGS-8.8x72028"7208.820517680
ZGS-8.8×76030"7608.822517680
ZGS-8.8×80032"8008.824317680
ZGS-8.8x92036"9208.826517680
ZGS-8.8x122048"12208.834017680
ZGS-12×30011 5/8"3001280240110
ZGS-12×50019 11/16"50012150240110
ZGS-12x60023 5/8"60012170240110
ZGS-12x65025 9/16"65012190240110
ZGS-12×70028"70012200240110
ZGS-12×76030"76012225240110
ZGS-12×80032"80012243240110
ZGS-12x86034"86012253240110
ZGS-12×90036"90012265240110
